SENSECOM-HPNC

Code: 171/NON 171/1XH 171/2XH Choose variant
€698 €994 €1 290 from €698 €844,58 incl. VAT €1 202,74 incl. VAT €1 560,90 incl. VAT from €844,58 incl. VAT
In 2 days (>5 pcs) In 2 days (>5 pcs) In 2 days (>5 pcs) Choose variant
SENSECOM-HPNCM expansion module
Chosen variant is not available. Reset selected parameters.
Antennas
NB-IoT multi-year flat rate
Senseparam flat fee

Remote transmission unit for 2-8 vibrating wire sensors (VW), NB-IoT network SMA for external antenna (select antenna). NB-IoT SIM card with a 10-years flat rate with  applicable NB-IoT coverage . Select SENSEPARAM portal data access multi-year flat rate (single-user access is free). Endurance >10years on single battery

Detailed information

Product detailed description

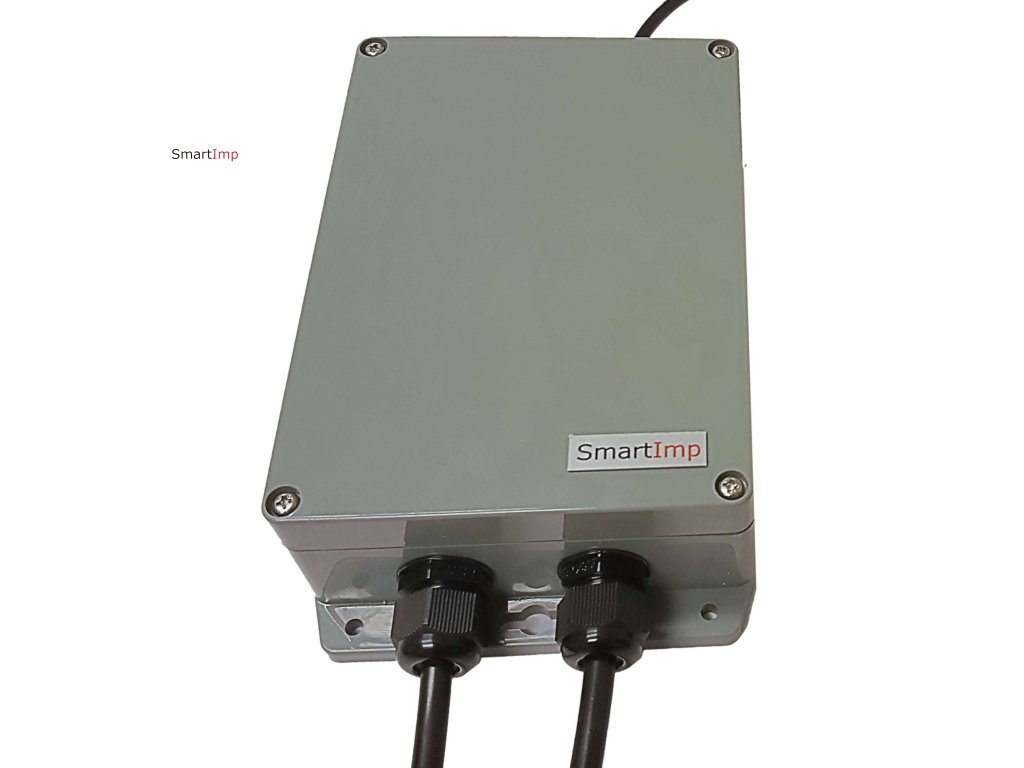

Remote transmission device for vibrating wire (VW) /resonant sensor using a nationwide LPWAN IoT network NB-IoT.

    •  Input from resonant / vibrating wire (VW) sensor
      • Multichannel unit for 2 VW sensors, expandable to 8 VW sensors
        • String oscillation period measurement
        • Thermistor measurement
    • Requires 1-2 SENSECOM-HPNCM extension modules for more than 2 VW channels , each HPNCM module supports 3 VW extra channels
  • Applicable for VW-type geotechnical and structure diagnostic sensors:
    • Pressure/piezometers (pore pressure, soil moisture and water levels)
    • Strain Gauges
    • Load & Pressure Cells
    • Displacements
    • Crackmeters
    • Extensometers
    • In Place Inclinometers
    • Tiltmeters
    • External Temperature
  • Operating with VW instruments/sensors from producers like:
  • Measured string frequency range 600Hz - 5kHz
  • Resolution and accuracy:
    • Within range 600-1500Hz, Accuracy: 0.009 %, Resolution: 0,002Hz
    • Within range 1500-3000Hz, Accuracy: 0.011 %, Resolution: 0,004Hz
    • Within range 3000-5000Hz, Accuracy: 0.010 %, Resolution: 0,006Hz
    • The accuracy of the measurement is usually limited by the accuracy of the VW sensor itself and its calibration capability.
  • Built-in sensors:
    • atmospheric pressure
    • temperature
    • relative humidity
    • detection of condensed water
    • accelerometer
  • Memory (datalogger) for least 1500 measurements
  • E2E encryption with AES-256 possible
  • > 10 years without battery replacement with 2 transmissions and 2-12 measurements a day

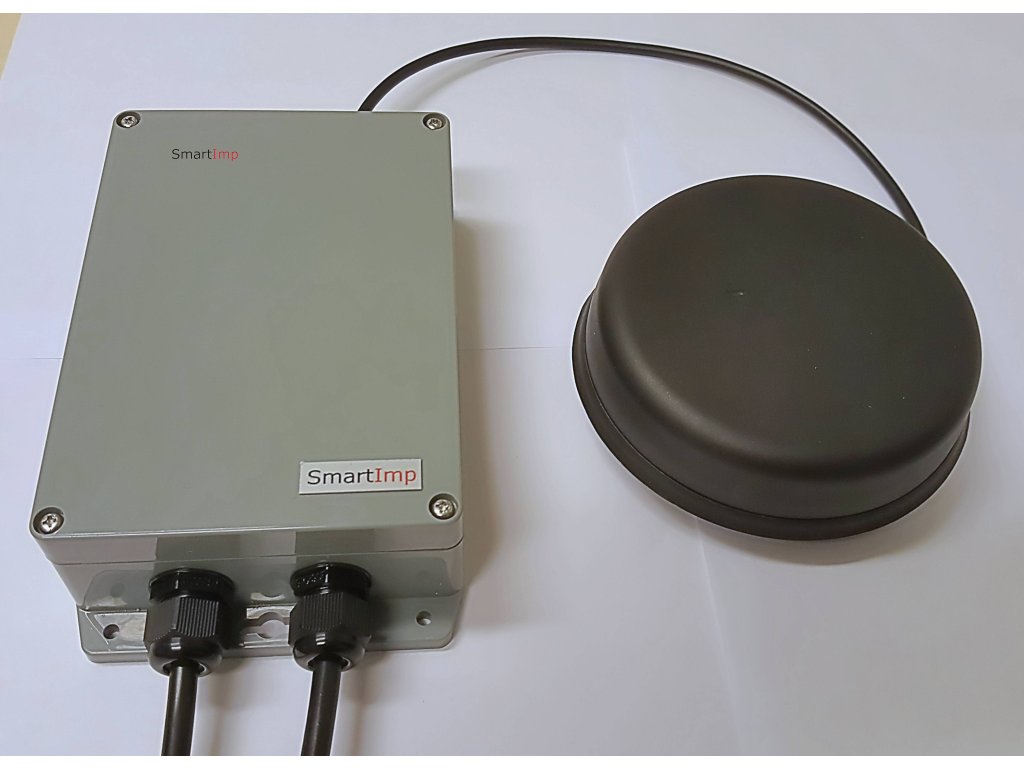

  • SMA connector for external antenna, select optional external antenna or use other antenna (suitable for NB-IoT band)
  • IP67 protection
  • Communication to the nationwide IoT network NB-IoT, Select whether to include an NB-IoT SIM card with 10 years flat rate with coverage type.
  • Select optional multi-user multi-year flat rate for SENSEPARAM portal to access processed data, sending callbacks to your server, etc. or process data directly from NB-IoT UDP packets.

Additional parameters

Category: Remote Sensors Reading
Warranty: 2 years
Casing: IP67
Encryption capability: AES-256
IoT network type: NB-IoT
Power supply: Battery (Li-SOCl2), size "D"
Primary input: VW channel
