SENSECOM-CMDO
Code: 162/RS6Related products
Product detailed description

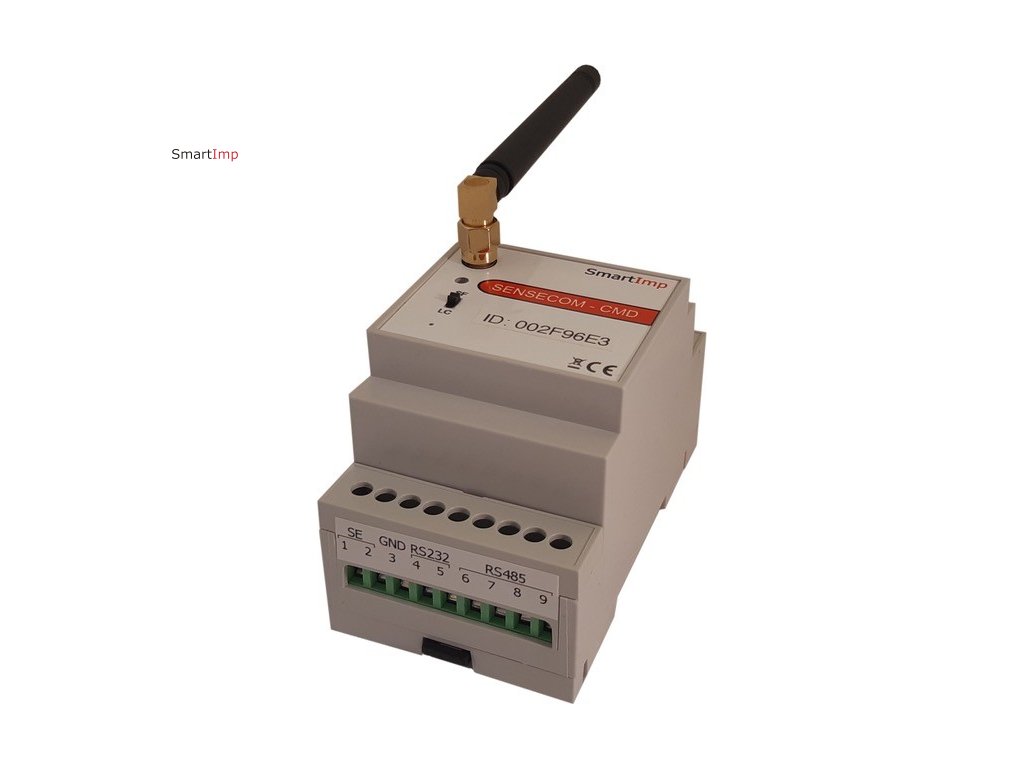

The SENSECOM-CMDO device is designed for data readings via one of serial interfaces (select model):
- RS-485
- RS-422
- RS-232
Applied communication protocol is MODBUS.
The device sends readings from meter registers (or other source device registers) via a nationwide SIGFOX IoT network, directly or via repeater SENSECOM-WSH (for radio-hard-to-reach locations). Messages interval can be setup within the range 10min-24h (minimum 10min per register needs to be consider in setup of an interval)
Contains supercap (1F) which allows overcome short power outages with signalling power-of status if set.

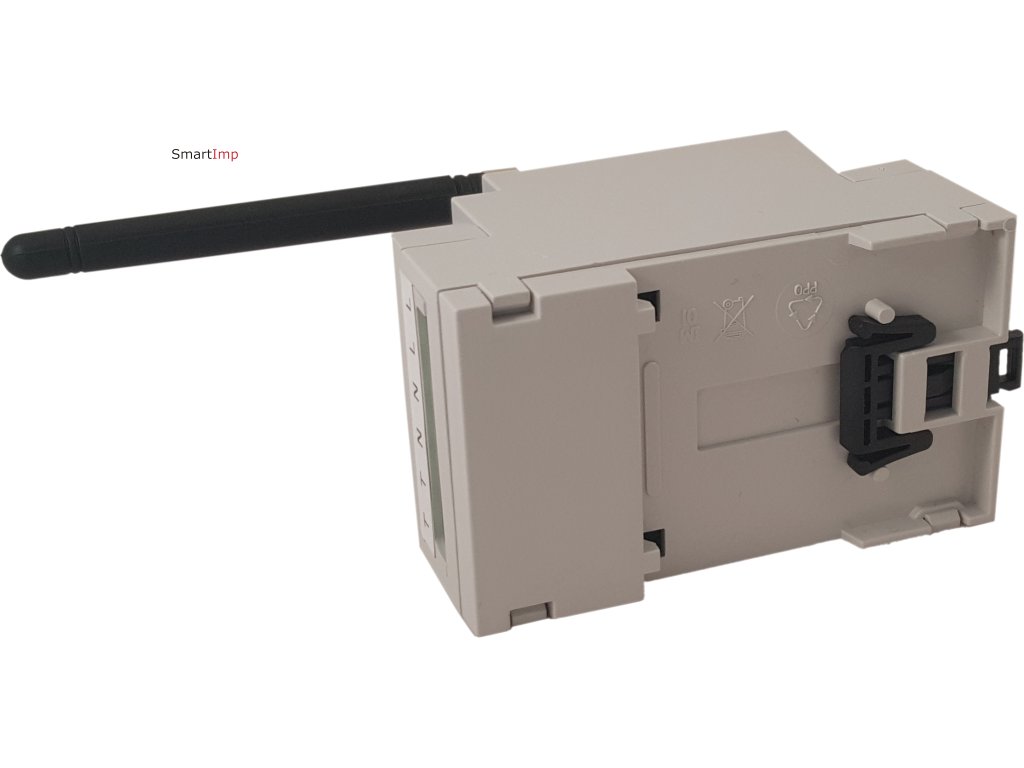

All SENSECOM-CMD models are manufactured in a DIN casing, 3U width, IP20.
Easy installation on DIN rail by authorized technician (for low voltage 240/380V installations) if not battery model.
Read-out capacity up to 15 registers to be read from source device is configurable via downlink.
Typical applications:
Remote readings from registers of utility meters or other devices possessing serial interface, e.g. electricity meters, gas meters, water meters, calorimeters using standardized registers and protocols.
If vendor specific protocol or use is applied, additional firmware development is needed to support this, ask vendor if this is the case.
Additional parameters
| Category: | Registers read-out |
|---|---|
| Warranty: | 2 years |
| ? Power supply: | Mains (240V) or Battery |
| ? Meter interface: | RS232/RS485/RS422(full duplex) |
| Meter communication protocol: | MODBUS |
| Max number of reading registers: | 15 |
| Reading interval (sending data): | 10min - 24h |
| Casing: | DIN Rail, 3U width, IP20 |
| ? Galvanic isolation: | Yes |
